Abandoned NC&STL Railway
Route Between Memphis, Jackson & Bruceton

Maps of Memphis Union Station & NC&STL West Yard

Click for enlargement
NC&STL Roundhouse and West Yard (early 1900's).
Contributed by Mike Condren.

Early 1900's NC&STL Railway line on Frisco Map of Broadway between Memphis Union Station and west of KC Junction. NC&STL Rwy. is the northmost line of seven tracks.

The Historic Memphis Union Station Map (1912)

1912 Memphis Union Station Co. Plan of Terminal Facilities

Click for enlargement

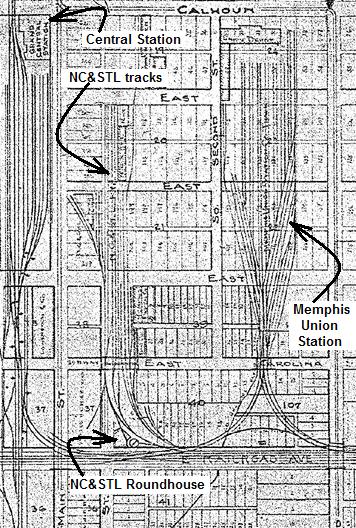

Detail of NC&STL Freight Station, roundhouse
and tracks diagram (west yard) between Memphis
Union Station & Central Station in early 1910's.
Contributed by Mike Condren.

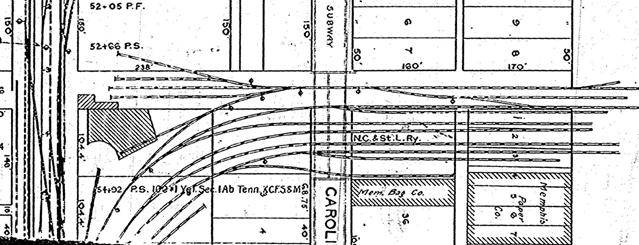

South part of NC&STL west yard and Memphis Union Station wye legs, both in north side of
Broadway in 1915. Contributed by Mike Condren.

Click for enlargement

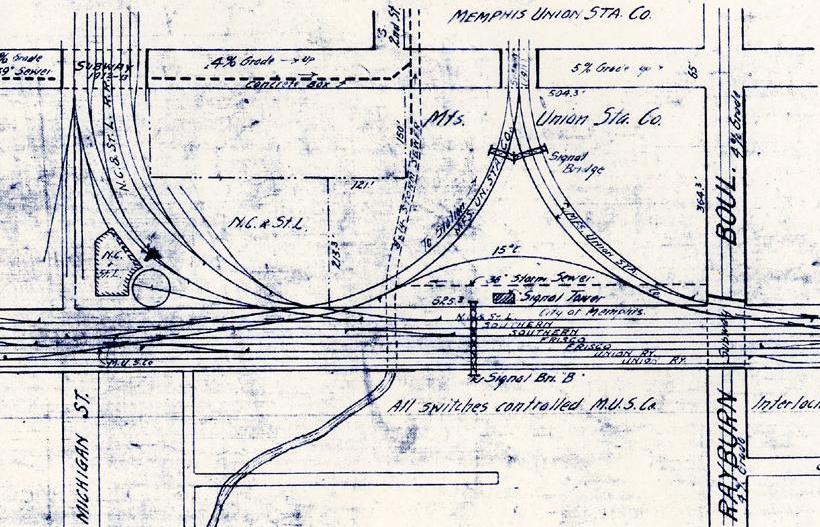

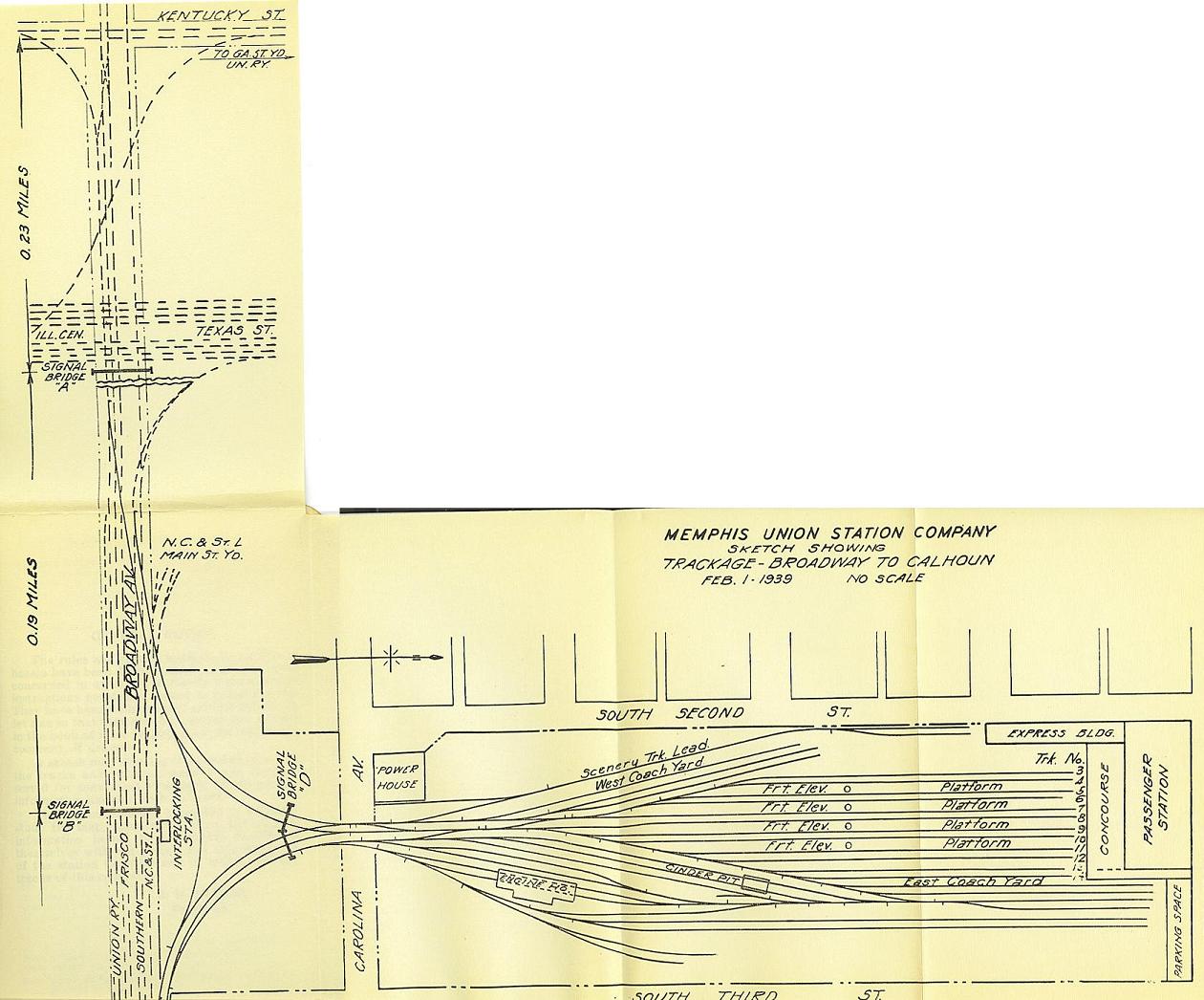

Memphis Union Station Company trackage map between Broadway to Calhoun
in February 1, 1939. Contributed by Steve Johnson.

Click for enlargement
NC&STL Frieght House (west yard), Memphis Union Station & Bellevue Yard trackage map
in May 1953. Contributed by Mike Condren.

Click for enlargement

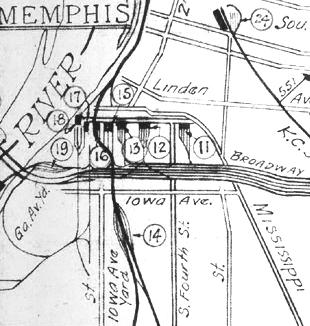

Memphis Tennessee Railroad Facilities
map on June 19, 1941. NC&STL and
L&N Freight Station and Calhoun Street
Yard are at circle 13. Union Station is at
circle 12. See legend on the upper left
corner of this map. Contributed by
Mike Condren.

Click for enlargement

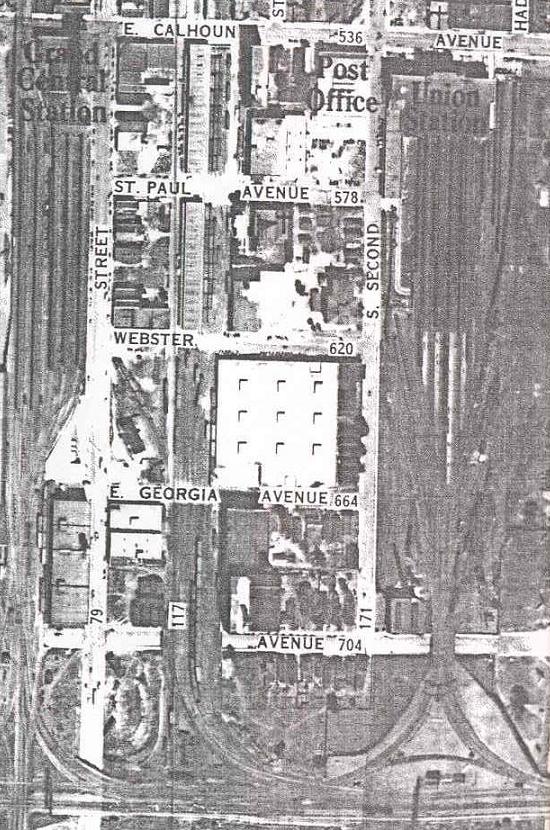

1938 aerial photo of Memphis Union Station & NC&STL west yard
(see square 117). Contributed by Mike Condren.

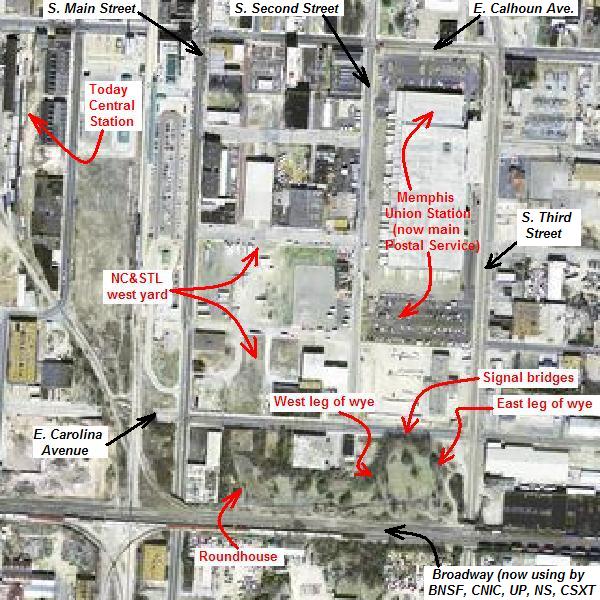

Urban area aerial photo of the former Memphis Union Station & NC&STL west
yard provides Geographic Information System by
Shelby County Register Of Deeds around 2004.

Trackage Map of formerly Memphis Union Station & NC&STL West Yard is now available. I traced it from the old trackage maps in the 1940's on the urban area aerial photo is from the 2004 USGS flyover. It is greater than 11-inch long by 17-inch length paper prepared by myself which the .PDF byte size is over 2.5M. Send me email asking for a copy of the map.

Click for enlargement
2007 & 2008 Modern maps of west yard (see NC&STL freight yard) and
Union Station tackages. Contributed by Mike Condren.

Click for enlargement
1913 NC&STL track diagram (updated circa 1930's). See legend for the abbreviations and symbols.

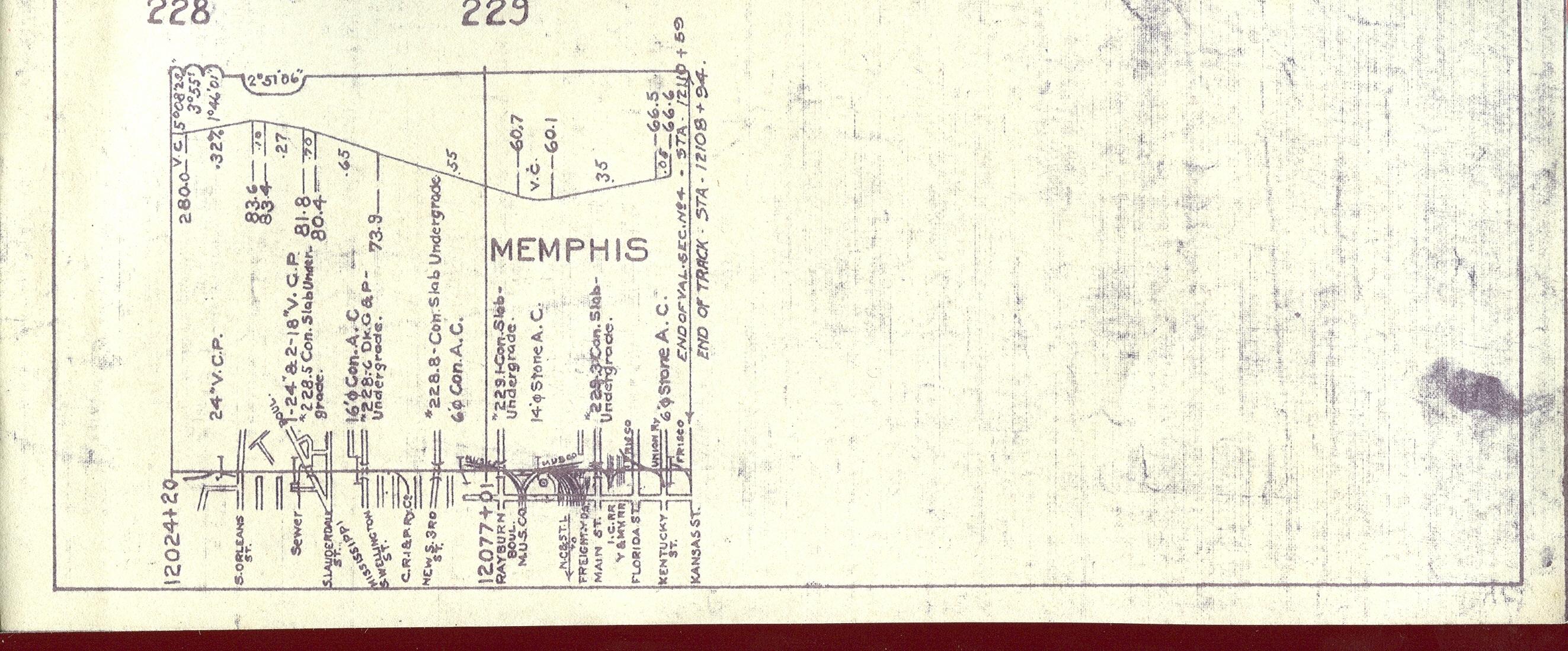

Frisco & Illinois Central crossing profile & track diagram between Bridge Junction in West Memphis, Arkansas and CRI&P Railway Yard in east of Memphis Union Station including NC&STL line (circa 1920's)

Click for enlargement

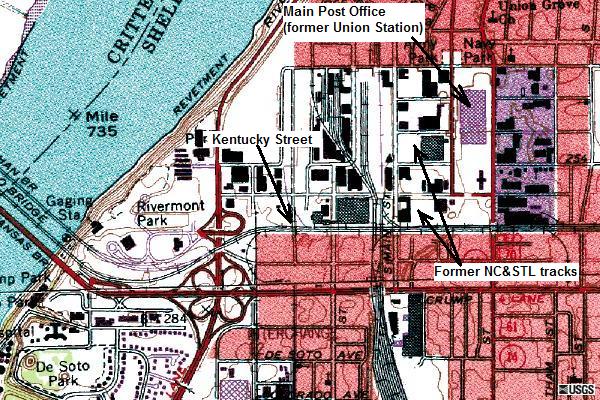

Topo map of Memphis Union Station on July 1, 1993 by TerraServer-USA.
