KC Junction & Bellevue Yard


Abandoned NC&STL Railway
Route Between Memphis, Jackson & Bruceton

NC&STL Bellevue Yard - Milepost NI 226.9 &
KC Junction - Milepost NI 227.2

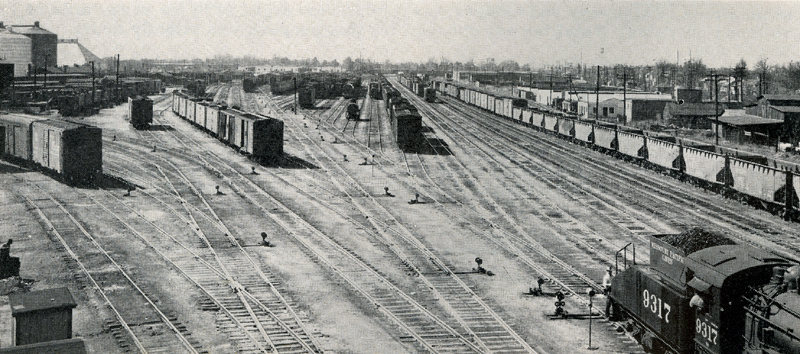

NC&STL Bellevue Yard is in north part of this yard (right) where all the empty hopper cars are sitting.
Today the yard is fully owning of Union Pacific Sargent Yard. This view is looking west appeared in the May 1953.
Contributed by Mike Condren.


Click for enlargement

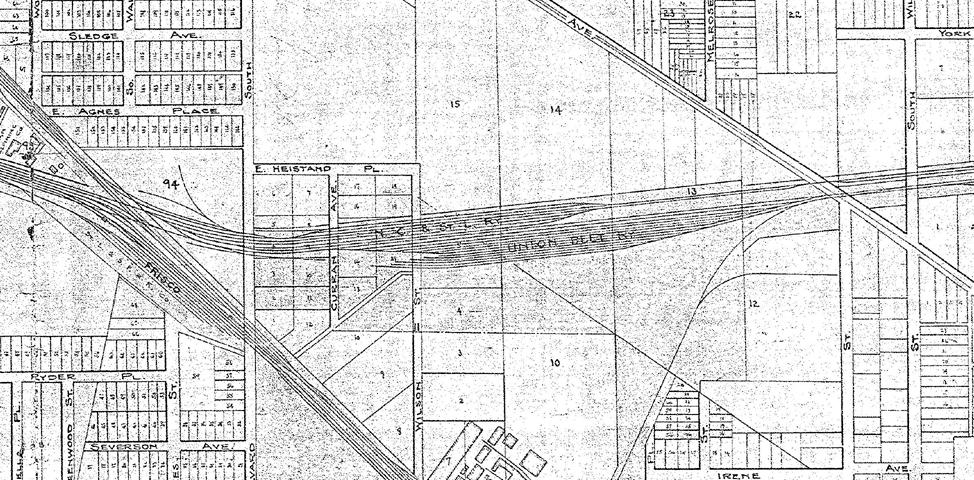

NC&STL main yard (was Bellevue Yard, now Sargent Yard) at Kansas City Junction (early 1910's). See 1950 aerial photos at
Missouri Pacific Sargent Yard. Contributed by Mike Condren.

See NC&STL Railway map (June 19, 1941) between Mississippi River and Aulon Tower.
See legend on the upper left corner of this map.


Click for enlargement

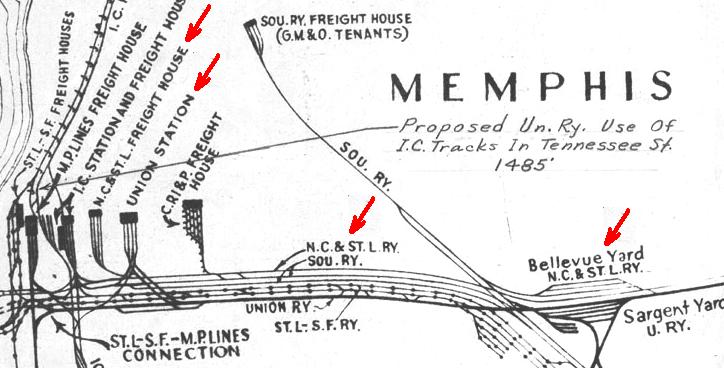

NC&STL Frieght House (west yard), Memphis Union Station & Bellevue Yard trackage map
in May 1953. Contributed by Mike Condren.


Click for enlargement
1913 NC&STL track diagram (updated circa 1930's). See legend for the abbreviations and symbols.


Click for enlargement
Topo map of Kansas City Junction on July 1, 1993 by TerraServer-USA.

More Links At KC Junction & Bellevue Yard

Page 115 and Page 116 of NC&STL Rules of the Transportation Department, effective April 1, 1952: Automatic Block Signal System Rules Applying Only Between Memphis & K. C. Junction.
NC&STL Railway Bulletin (7-1944) (see "Outer Yards")
Memphis Terminal Zone 5 track diagram at KC Junction where L&N (ex-NC&STL) line is (3-6-1967)
Many trains at KC Junction (between 1967 & 1978)
2007 & 2008 Modern colorful maps showing NC&STL Bellevue Yard
